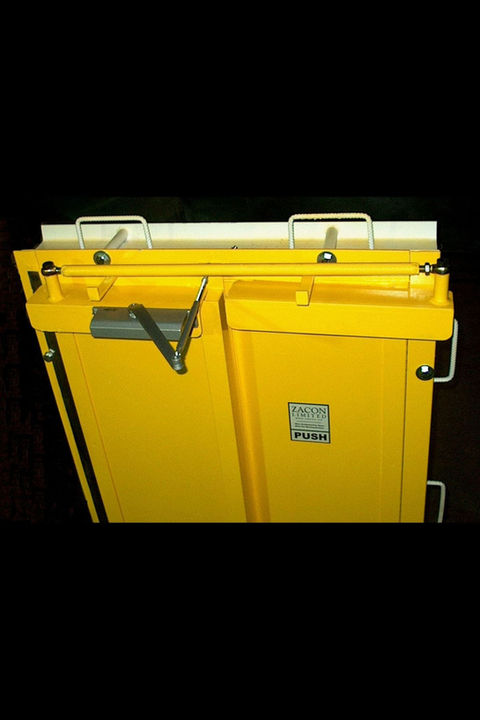

Balanced Personnel Door – BPD

The Zacon Balanced Personnel Door utilizes the same patented "Balanced System" found in our larger Balanced Ventilation Doors. By dividing the door into two halves that swing in opposite directions, static air pressures and ramp slopes are disregarded.

The force exerted on one section of the door when opening against air pressure is counteracted by the opposing section moving with the air flow. As a result, our personnel doors can be effortlessly opened even in high-pressure environments.



  • The patented balanced system ignores static air pressure and ramp slopes.

  • From 0 to 9” W.C

  • Economical low power draw.  All components are designed for absolute minimal/no maintenance and upkeep.

  • Door systems are quick and easy to install.

  • Push buttons, pull cords, cap lamp sensors, remote control (in motion), motion sensors, and manual operation.

  • Custom programming.


Safety is paramount, which is why our doors are equipped with a self-closing operator as a standard feature. This ensures the door remains closed when not in use, and the closing force can be adjusted to meet your specific requirements.




  • Heights: 7 feet (Clear Opening)

  • Widths: 3 feet (Clear Opening)

  • Custom size upon request

Door Frame

  • 6″ or 8″ Steel Channel 44W (300W)

  • 15mm rebar hoops (welded to the mainframe for shotcrete installation)

Door Leafs

  • 1 1/2″ x 1 1/2″ HSS tubing 50W (350W)

  • 3/16″ steel plate skin 44W (300W)

  • Each panel is One Piece Construction with an integrated handle


  • Full-length heavy-duty bolted to both the door leafs & main frame.

  • Greaseless (maintenance-free) Stainless Steel Pin

Balance Arms

  • Heavy Duty Balance Plates (drive mechanisms)

  • Skirting

  • MSHA rated rubber skirting


  • Safety Yellow (epoxy system)

  • Primer: Zinc Rich Primer

  • Preparation: Commercial Sand Blast




All Balanced Personnel Door Systems, as well as Retro-Fit Systems, come complete with General Arrangement, and Installation drawings. These drawings are printable versions available in 11″ x 17″ drawings.


Also included with the Door System is a complete manual. This complete manual is specific to the actual designed Door System or Retro-Fit package. The manual includes an installation, operations, and maintenance section. A hard copy and printable version on USB Key supplied.

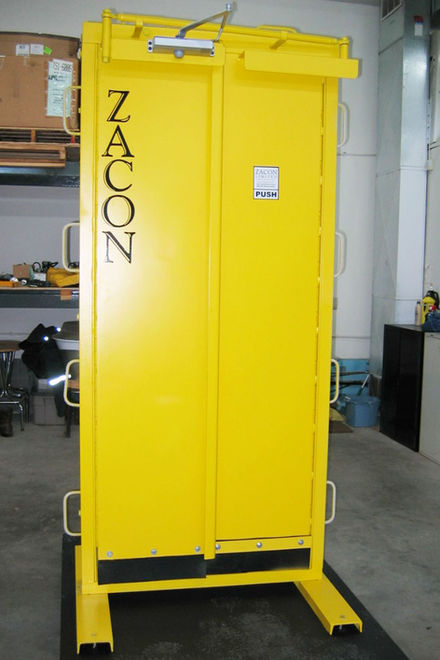

BPD Manufacturing

To enhance safety further and prevent pinch areas, our Balanced Personnel Doors are accessible with a stretcher. The standard door clearance of 3 feet wide by 7 feet high, open to ground level, minimizes tripping hazards. Custom sizes are also available upon request, eliminating the need for squeezing through tight spaces.

Image by Ant Rozetsky
Air Chamber

Offering High-Quality Air Chambers Engineered for Superior Performance

Discover the difference of superior air chamber manufacturing with Zacon. Our focus on quality and precision sets us apart in the industry. We understand the critical role that air chambers play in pneumatic systems, and that's why we go the extra mile to ensure every chamber we produce meets stringent quality standards.
When you choose our air chambers, you can have confidence in their performance, durability, and ability to withstand demanding operating conditions.

Air Chamber Manufacturing

Experience the ease and safety of Zacon Balanced Personnel Doors.

Contact us today to discuss your requirements and discover how our doors can enhance safety in your facility.
